AfterVLX 138 Panoramic Sliding Door in Delray Beach, FL | TruePane Windows & Doors
The VLX 138 Panoramic Sliding Door is a large-span aluminum slider built for homeowners who want a wall of glass between their living room and their patio, pool deck, or garden. It opens wide, glides without effort, and frames the view instead of interrupting it. TruePane Windows & Doors is an authorized ViewLux installation partner serving Delray Beach, which means you get factory-backed product support plus local installation crews who know Florida construction inside and out. If you’re researching this door for a new build or a remodel, call us at (561) 940-2917 to talk through sizing, glass packages, and what a realistic project timeline looks like.
Product Overview - VLX 138 Panoramic Sliding Door
The VLX 138 is what architects specify when a room needs to feel twice as large as it is. The design strips away everything except structural necessity. Thin sightlines, wide glass panels, and a track system that disappears into the floor or sill so the opening feels uninterrupted. In a Delray Beach home where indoor-outdoor living is the point, this door does the heavy lifting.

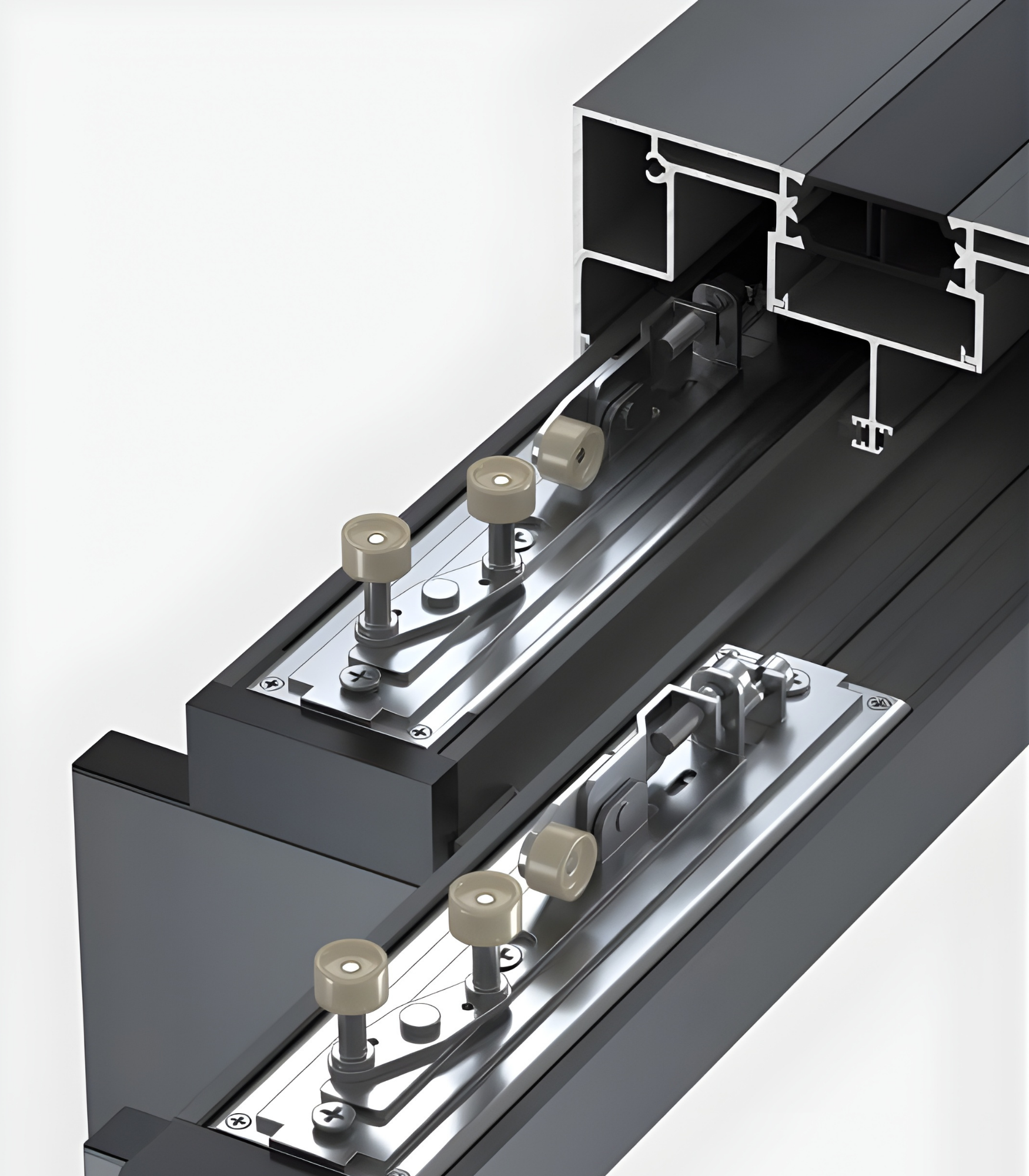

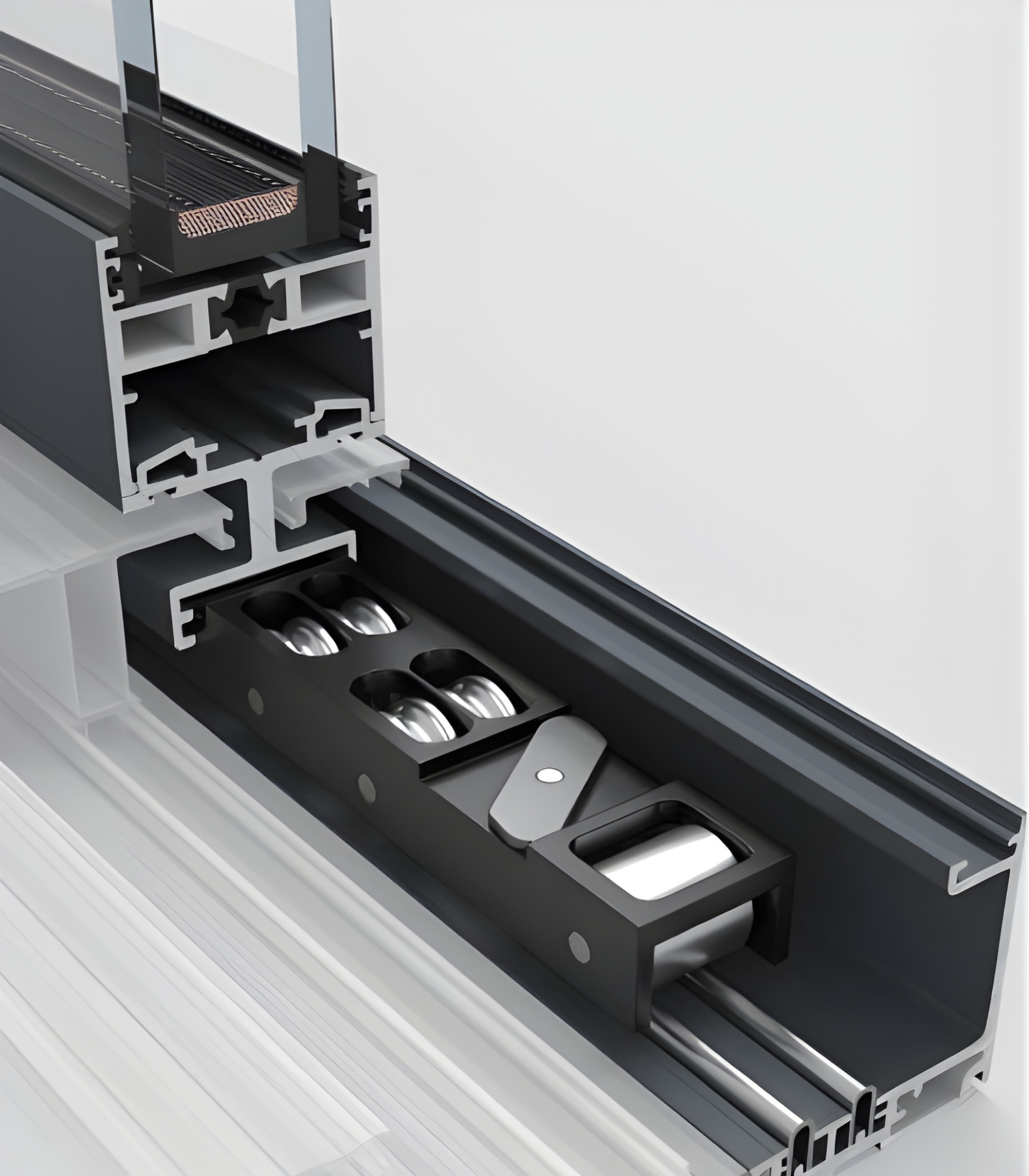

The engineering underneath is what makes the slim profile possible. Each panel rides on stainless steel bearing rollers that stay smooth over years of daily use. You push a 200-pound panel with two fingers and it coasts. That’s the detail people notice immediately, and it’s the detail that separates a premium door from a builder-grade slider.

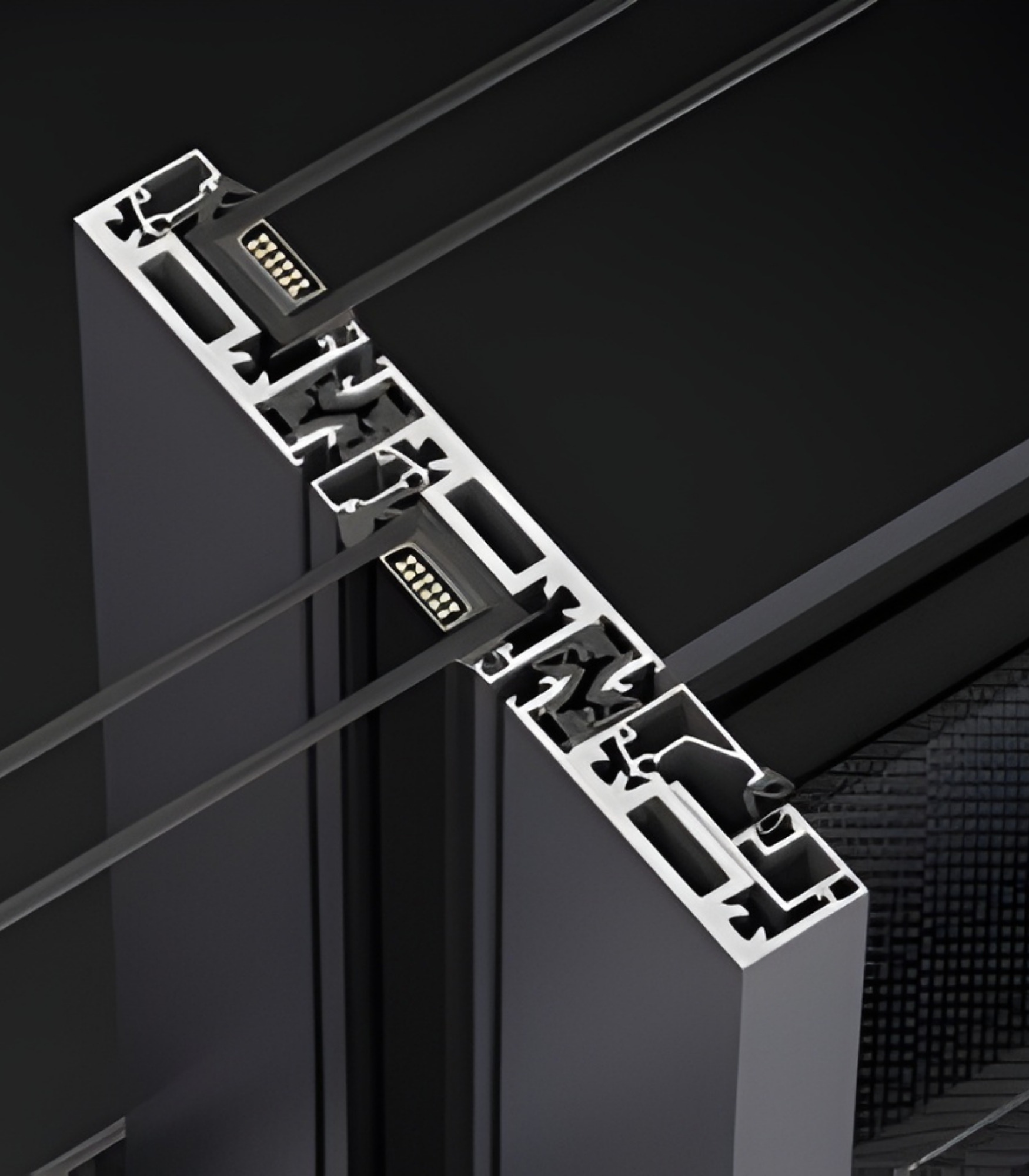

The frame is extruded aluminum with a wall thickness of 0.138 inches. That’s not a typo. It’s a thin-wall profile engineered to maximize glass area while still hitting structural load requirements. The profile width comes in at 1.535 inches, which keeps mullions and stiles narrow so your view reads clean from edge to edge. Multi-track configurations mean panels stack and pocket in ways that fit the home’s architecture, not the other way around.
Who is this door for? A homeowner in Lake Ida replacing a dated sliding glass door. A builder in Stone Creek Estates framing a great room that opens to a lanai. A renovator in Palm Trail who wants the kitchen, dining, and outdoor entertaining space to feel like one continuous room. If your project needs an opening from 12 to 36 feet wide, the VLX 138 handles it without a fixed post in the middle of your view.
Technical Specifications
- Wall thickness: 0.138 inches of extruded aluminum
- Profile width: 1.535 inches, slim stiles for maximum glass area
- Maximum span: Up to 36 feet wide, depending on track configuration and wind-load requirements
- Track configurations: 2-Track for two-panel stacking, 3-Track for three-panel flexibility, 4-Track for maximum opening width and multi-directional stacking
- Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint
- Color and finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Screen options: Retractable Screen, Sliding Screen

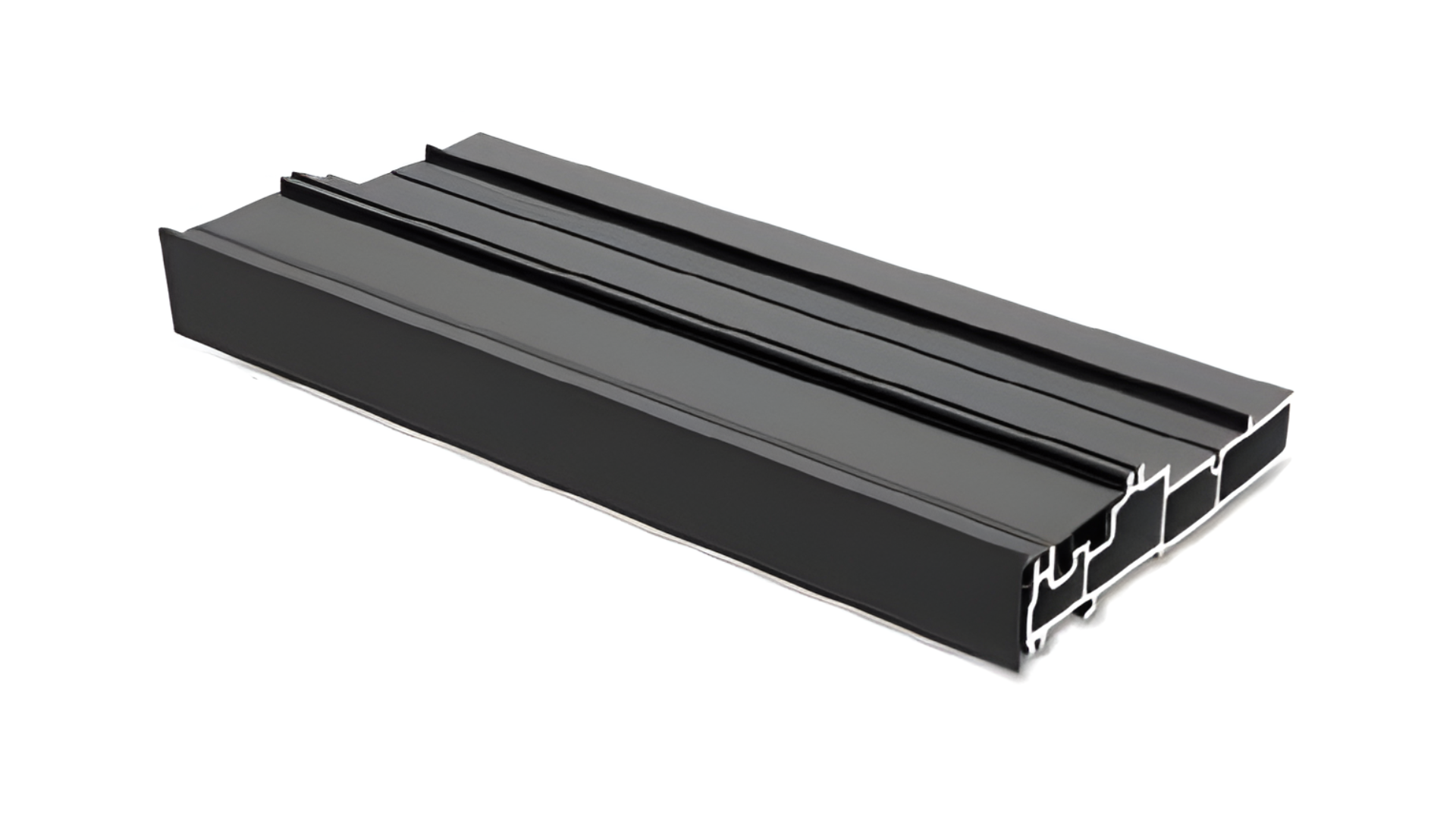

- Sill options: Flush Sill, Low-Profile Sill, Recessed Sill
These numbers matter because every one of them changes how the door looks, performs, and costs. A 2-track door with clear glass is a different budget than a 4-track with Low-E tinted laminate. Call (561) 940-2917 and we’ll walk you through a line-item quote based on your exact opening.
Performance Features
Thermal Efficiency

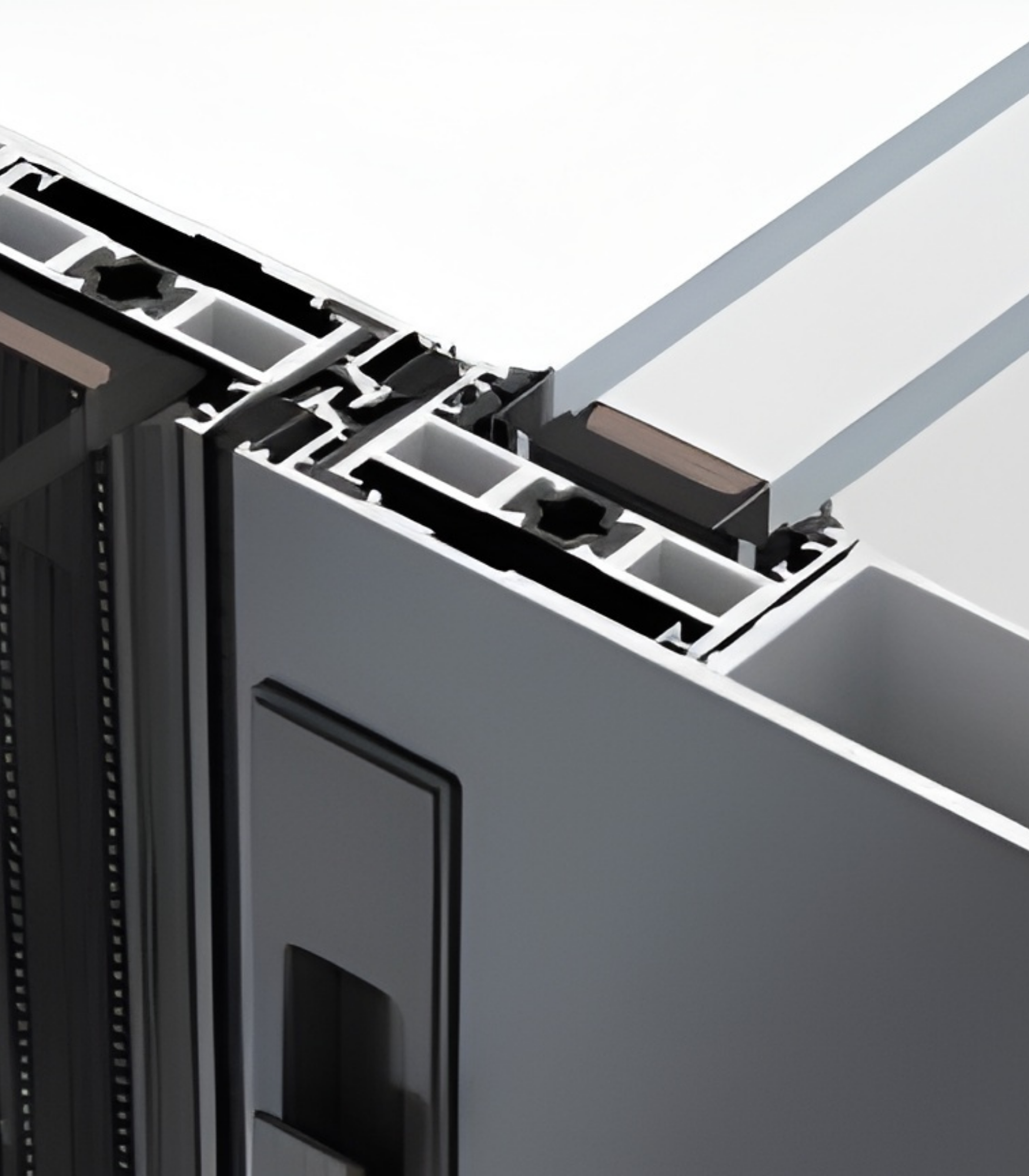

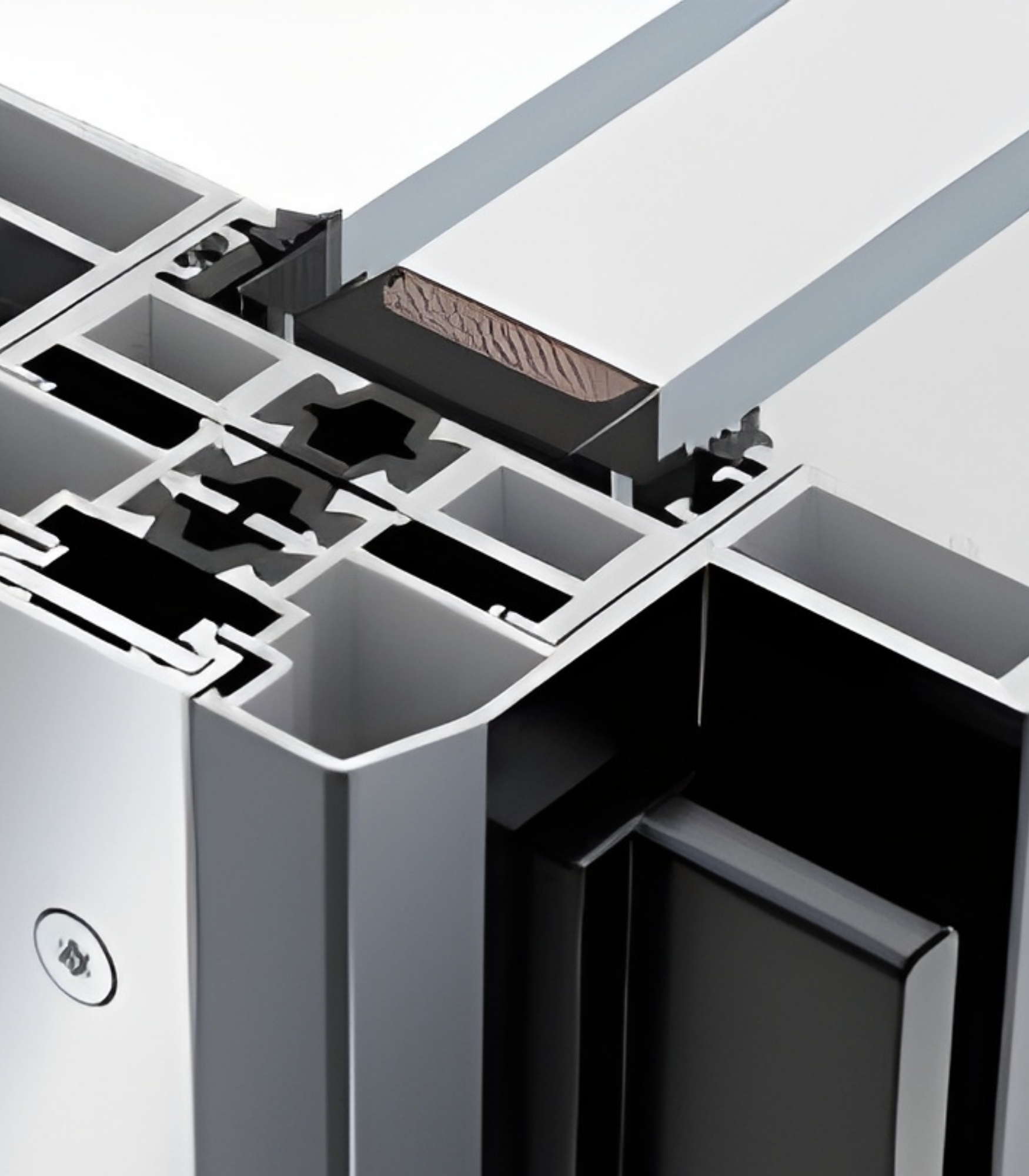

The VLX 138 frame uses thermal break technology that interrupts heat transfer between the interior and exterior aluminum. That means an NFRC-rated assembly that keeps conditioned air inside where it belongs. In Delray Beach summers, a thermally broken frame is the difference between a door that fights your AC and one that works with it.
Acoustic Performance
Sound control ratings on this series come from the combination of thick glass, tight perimeter seals, and laminated glass options. If your lot backs up to Atlantic Avenue traffic or a neighbor’s pool pump, we’ll spec laminated glass to knock down the noise before it gets inside.
Airtightness & Weather Seal
Every perimeter joint gets sealed with AAMA 812 low-expansion foam, and the weatherstripping system is designed to prevent air infiltration even during coastal wind events. You’ll notice the difference on a humid August afternoon when the door stays closed and the room stays comfortable.
Waterproofing

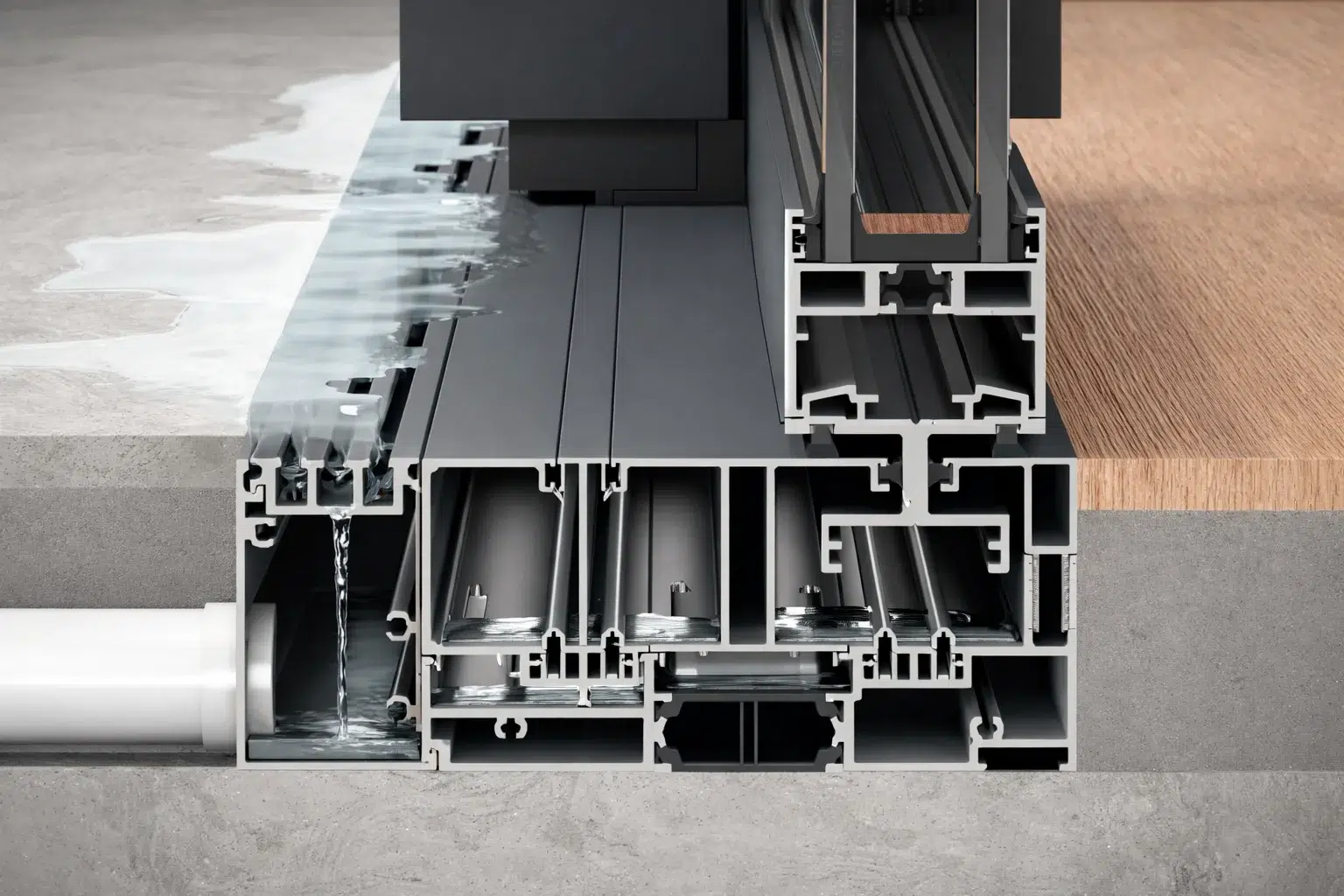

The track and sill configurations are engineered to shed water outward, not inward. With a properly installed flush or recessed sill, driving rain against the door drains to the exterior. Pair that with correct flashing and you have a dry interior even in a Florida monsoon.
Wind Resistance
The VLX 138 is wind-load rated for local climate requirements, including impact-resistant laminated glass when your Delray Beach location calls for it. The frame engineering and multi-point locking hardware keep the door in place during a storm when lesser doors flex and fail.
Security & Hardware
Multi-point locking mechanisms secure the panel at the head, sill, and meeting stiles. The hardware is stainless and corrosion-resistant, which matters within a few miles of salt air. You get a door that locks like a wall and operates like a drawer.
Color & Glass Options
The six finish options cover the range of what we see in Delray Beach architecture. Premium Black is the confident, modern choice for a white stucco home. Pure White disappears into bright coastal interiors. Anodized Silver reads industrial and crisp. Bronze and Champagne warm up a transitional or Mediterranean facade. Teak Wood gives you the warmth of timber without the maintenance of organic wood in a humid climate.
Glass choices depend on what you need the door to do. Clear glass maximizes visible light and is the most affordable. Low-E glass is the everyday upgrade for energy performance and UV protection. Frosted and Obscure glass give you privacy for a bathroom access point or a side yard without cutting light. Black Tint and Gray Tint cut glare on west-facing walls and add a sleek, modern look from the street. Impact-rated laminated glass is available for any of these when code or peace of mind calls for it.
Screens are not an afterthought here. A retractable screen hides in the frame when you want the view uninterrupted. A sliding screen gives you permanent bug protection during South Florida evenings when you want the doors open and the mosquitoes out.
Installation by TruePane Windows & Doors in Delray Beach
Here’s what most homeowners don’t know: a premium sliding door installed poorly will perform worse than a mid-range door installed correctly. Racking, binding, leaking, fogging, sticking. These are installation failures, not product failures. The manufacturer warranty on any ViewLux product assumes professional installation to AAMA standards. If a general contractor slams it into the opening without leveling the track, you own the problem.
We don’t do that. Our pre-installation inspection starts with measuring the actual rough opening, not just the old door size. We check the floor for level, the jambs for plumb, and the header for deflection. If the opening isn’t square, we fix it before the door goes in. That’s not always cheap, but it’s always necessary for a door that spans 20-plus feet and weighs several hundred pounds per panel.
On install day, we set the frame level, plumb, and square, then secure it to the structure per AAMA 2400 and AAMA 2410 installation standards. Every perimeter joint gets sealed with AAMA 812 low-expansion foam, which prevents air and water intrusion without putting pressure on the frame. Flashing and sill pans are integrated so water that gets past the exterior drains outside, not under your flooring. After the panels are hung and adjusted, we run a final water test on the sill and track, then walk the door with you and show you how the hardware works.
Delray Beach brings specific challenges. Salt air near the coast accelerates corrosion on cheap hardware. Summer humidity tests every seal. Afternoon storms blow rain sideways against western exposures. Our crews build for those conditions because we live and work here. Call (561) 940-2917 and we’ll schedule a free on-site measurement at your Delray Beach property.
Frequently Asked Questions - VLX 138 Panoramic Sliding Door
Lead time typically runs 6 to 10 weeks from the date the order is confirmed and the final measurements are locked in. Custom color options and impact-rated laminated glass can add a week or two. We give you a written timeline at the quote stage so your contractor can schedule around the door, not behind it. Call (561) 940-2917 for current lead times on your exact configuration.
Potentially, when ordered with Low-E glass and thermal break technology. The federal energy tax credit for exterior doors applies to doors that meet specific NFRC U-factor and solar heat gain requirements. We can spec glass packages that meet the standard for the Southern climate zone. Ask about qualifying configurations when you call (561) 940-2917.
The VLX 138 carries a manufacturer warranty from ViewLux that covers the frame, glass, and hardware. The warranty stays valid only when the door is installed by an authorized partner like TruePane Windows & Doors according to AAMA standards. We also back our installation workmanship so you have one number to call if anything goes wrong: (561) 940-2917.
Yes, within the structural limits of the series. Maximum span is 36 feet wide, and panel widths are calculated based on your opening, wind-load requirements, and track configuration. We measure your rough opening, confirm panel sizes with ViewLux engineering, and give you shop drawings before anything goes into production. If your opening can’t accommodate the standard sizing, we’ll tell you before you spend money, not after.
Minimal maintenance is one of the reasons people choose aluminum. Clean the track with a vacuum and a damp cloth every few months, keep the weep holes clear of debris, and wipe the frame with mild soap and water twice a year. Lubricate the rollers annually with a silicone-based product recommended by the hardware manufacturer. Avoid abrasive cleaners and pressure washers on the anodized or powder-coated finish. If you’re in a coastal Delray Beach neighborhood, rinse the frame monthly to remove salt buildup. Still have questions? Call (561) 940-2917 and we’ll walk you through it.
Get a Quote - VLX 138 Panoramic Sliding Door in Delray Beach
If you’re planning a new build or a remodel in Delray Beach and want to see what this door looks like in your opening, let’s talk. We’ll schedule a free on-site measurement, review glass and finish options, and give you a written line-item quote with a fixed installation schedule. Call (561) 940-2917 or stop by our showroom to operate the door yourself. You’ll feel the difference in the first push.
Written by the team at TruePane Windows & Doors, serving Delray Beach and the surrounding Palm Beach County area.
