AfterVLX 80 Casement Window in Delray Beach, FL | TruePane Windows & Doors
The VLX 80 casement window is a side-hinged aluminum window built around two things: ultra-narrow sightlines and maximum ventilation. When the sash swings open, the entire opening clears for airflow, which matters in Delray Beach where cross-breezes do real work from March through November. TruePane Windows & Doors is an authorized ViewLux installation partner, which means you get factory-backed product quality plus an install crew that sets every unit level, plumb, and square per AAMA standards. If you’re replacing old single-pane windows or spec’ing new construction, call (561) 940-2917 for a free on-site measurement and line-item quote.
Product Overview - VLX 80 Casement Window

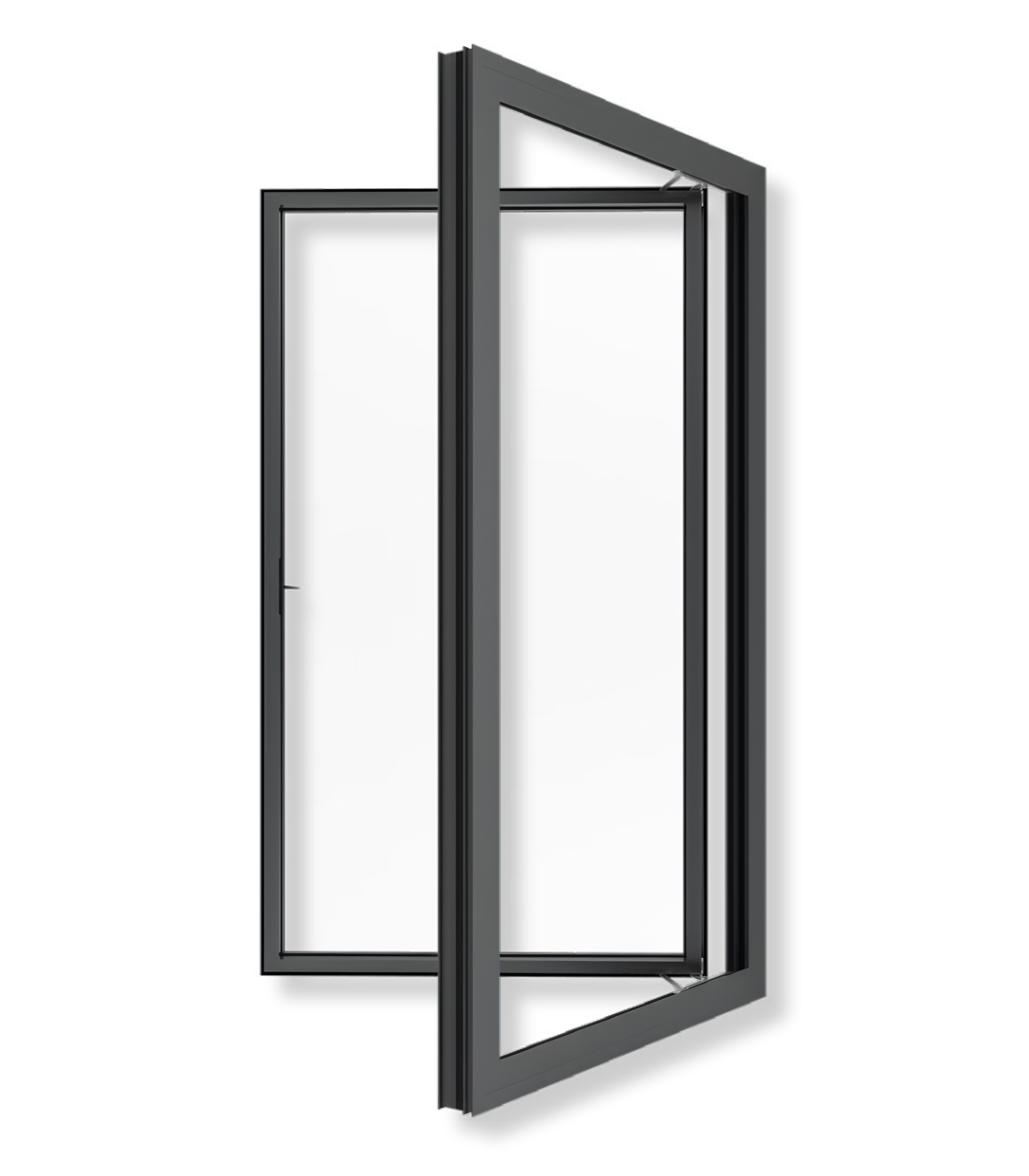

The VLX 80 is part of ViewLux’s aluminum window line, and it’s the window we recommend most often in Delray Beach when a homeowner wants clean sightlines without sacrificing durability. The frame uses a 1.97″ profile width, which reads as a slim line from inside and out. Casement operation means the sash cranks outward on side hinges, so there’s no center rail splitting your view when the window is closed. When it’s open, you get full top-to-bottom ventilation rather than the half-open airflow of a slider or double-hung.
Why do buyers pick this series over other styles? Three reasons come up in nearly every Delray Beach project. First, aluminum handles Florida’s moisture and heat better than wood or vinyl over a 20-30 year life cycle. Second, the narrow frame maximizes glass area, which matters when you’ve got a view of a pool, garden, or canal worth protecting. Third, casement windows seal tightly on all four sides when closed, which is a real advantage in a climate where afternoon thunderstorms hit hard and humidity tests every gasket in the house.
We’ve installed the VLX 80 in lakefront condos off Linton Boulevard, mid-century ranches in the Seagate neighborhood, and new builds west of the Turnpike. It fits architectural styles from modern concrete block to Key West-style homes because the frame width stays modest and the finish options run the full range from matte black to bronze to white.
Technical Specifications
- Frame wall thickness: 0.079″ aluminum extrusion
- Profile width: 1.97″ sightline-optimized frame
- Glass options: Clear, Frosted, Low-E, Tempered, Laminated (impact-rated available)
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Screen options: Fixed Screen or Retractable Screen
- Sill options: Standard Sill, Low-Profile Sill

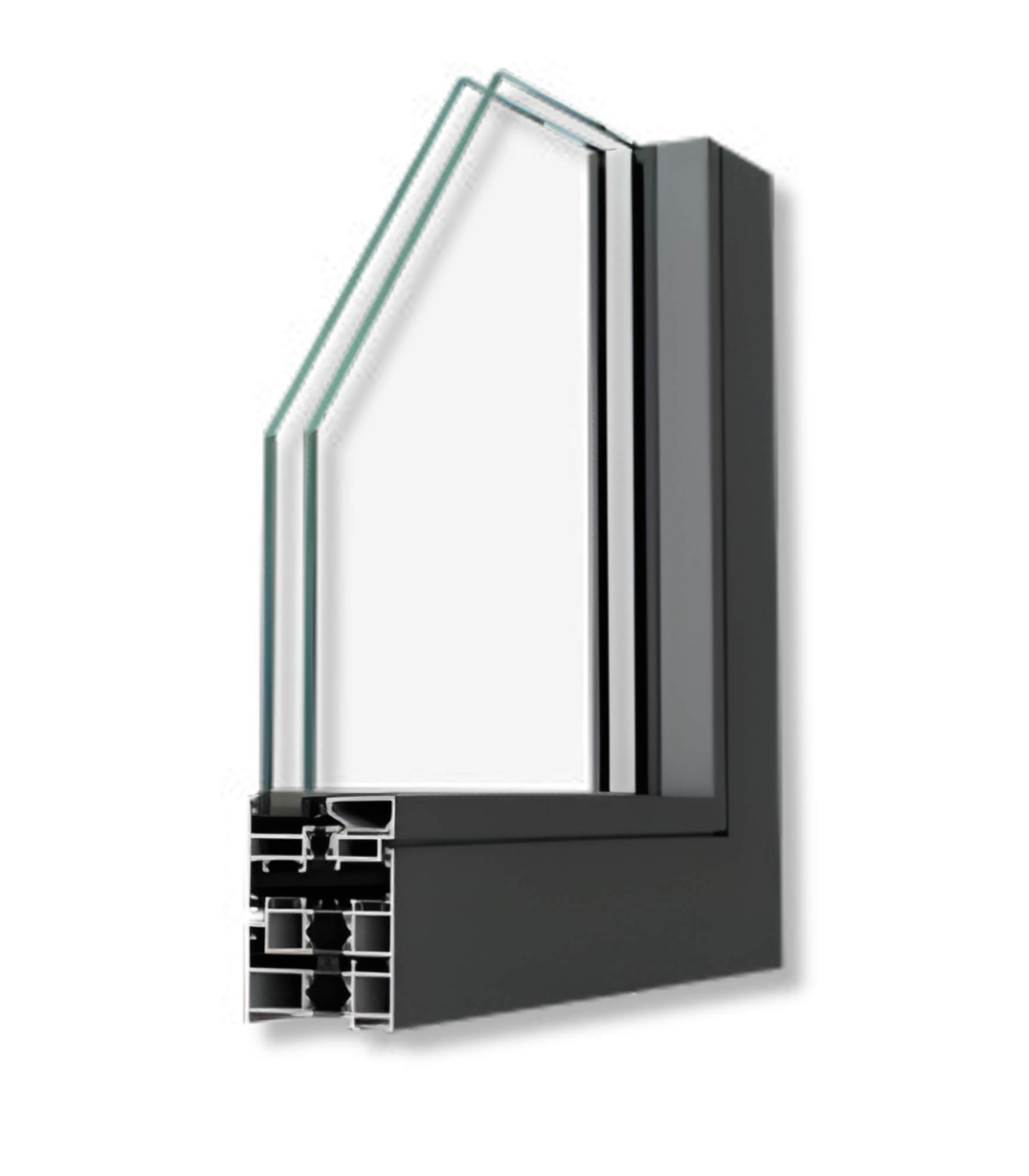

- Performance: Thermal break construction, NFRC-rated energy performance, AAMA 2400/2410 installation compliance
- Sealant: AAMA 812 low-expansion foam on all perimeter joints
All six finishes are available across every glass configuration, so you’re not forced into a package. Laminated glass is the option we flag for Delray Beach homes within a mile of the ocean or in areas where debris impact is a concern during storm season.
Performance Features
Thermal Efficiency. The VLX 80 uses a thermal break separating the interior and exterior aluminum profiles. That break interrupts conductive heat transfer, which is why an aluminum frame can still earn a solid NFRC energy rating. Pair it with Low-E glass and Delray Beach air-conditioning bills drop measurably, especially on west-facing walls.
Acoustic Performance. Laminated glass, when selected, adds real sound deadening. In Delray Beach neighborhoods near Federal Highway or I-95, the difference between standard glass and laminated is night-and-day. The multi-point locking system also compresses the sash against weatherstripping, closing the micro-gaps that let sound leak through.

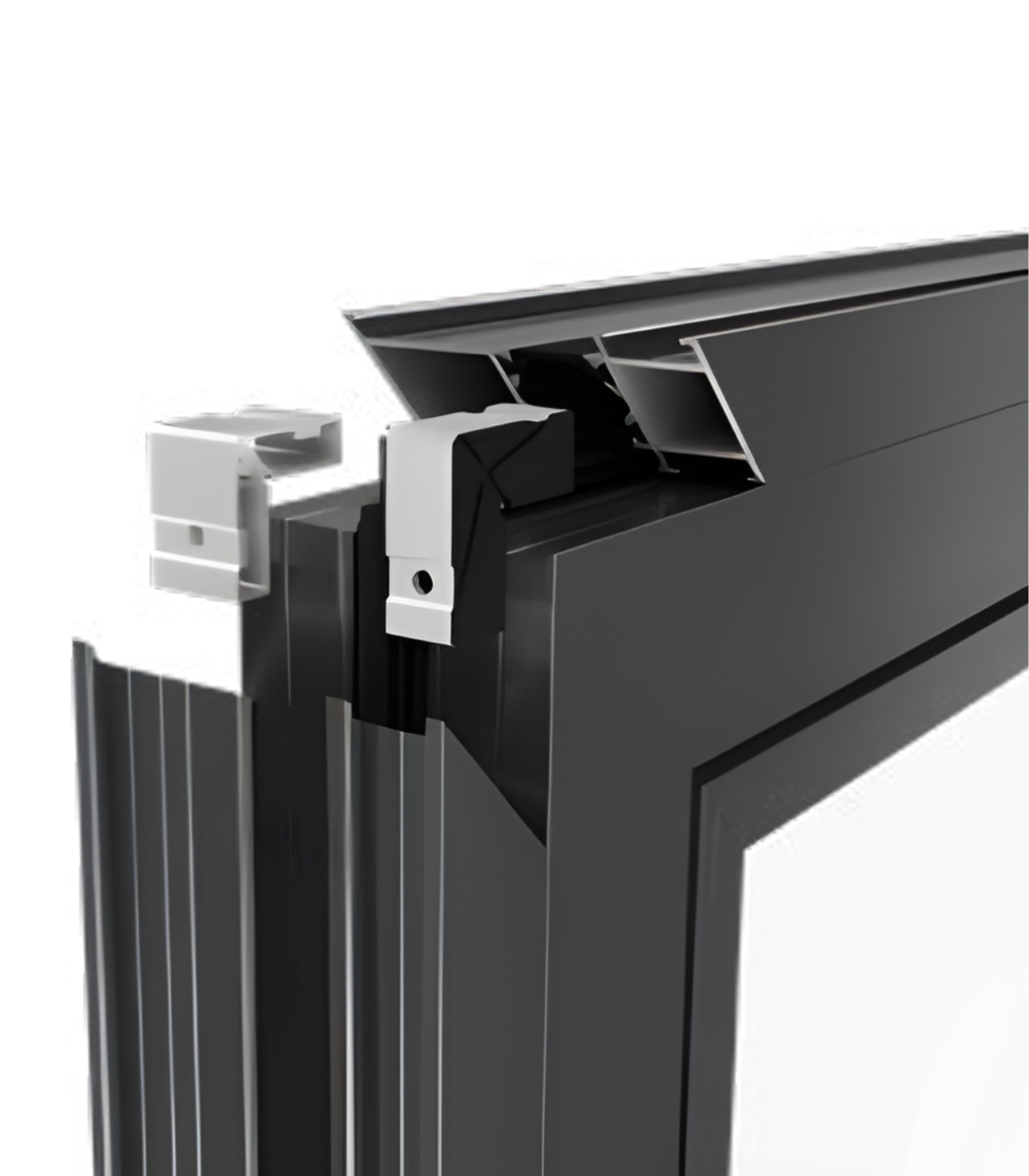

Airtightness & Weather Seal. Casement windows seal better than sliders by design. The sash presses into a gasket channel around all four sides when closed and locked. The result is a tighter air barrier, less humidity intrusion during Delray’s summer months, and less dust. The product is designed for airtightness and mist prevention.
Waterproofing. The frame is engineered with integrated weep paths that direct incidental water out and away from the interior. During our Delray Beach installs, we add AAMA 812 low-expansion foam along every perimeter joint, then tool a continuous sealant line. We do not rely on the factory weatherstrip alone to handle South Florida rain events.
Wind Resistance. The VLX 80 is wind-load rated for local climate requirements. With laminated impact glass, it’s built to handle the pressure changes and debris impact scenarios Delray Beach sees during hurricane season. We spec the correct anchorage and fastener schedule for the wind zone of the specific home, not a generic South Florida standard.

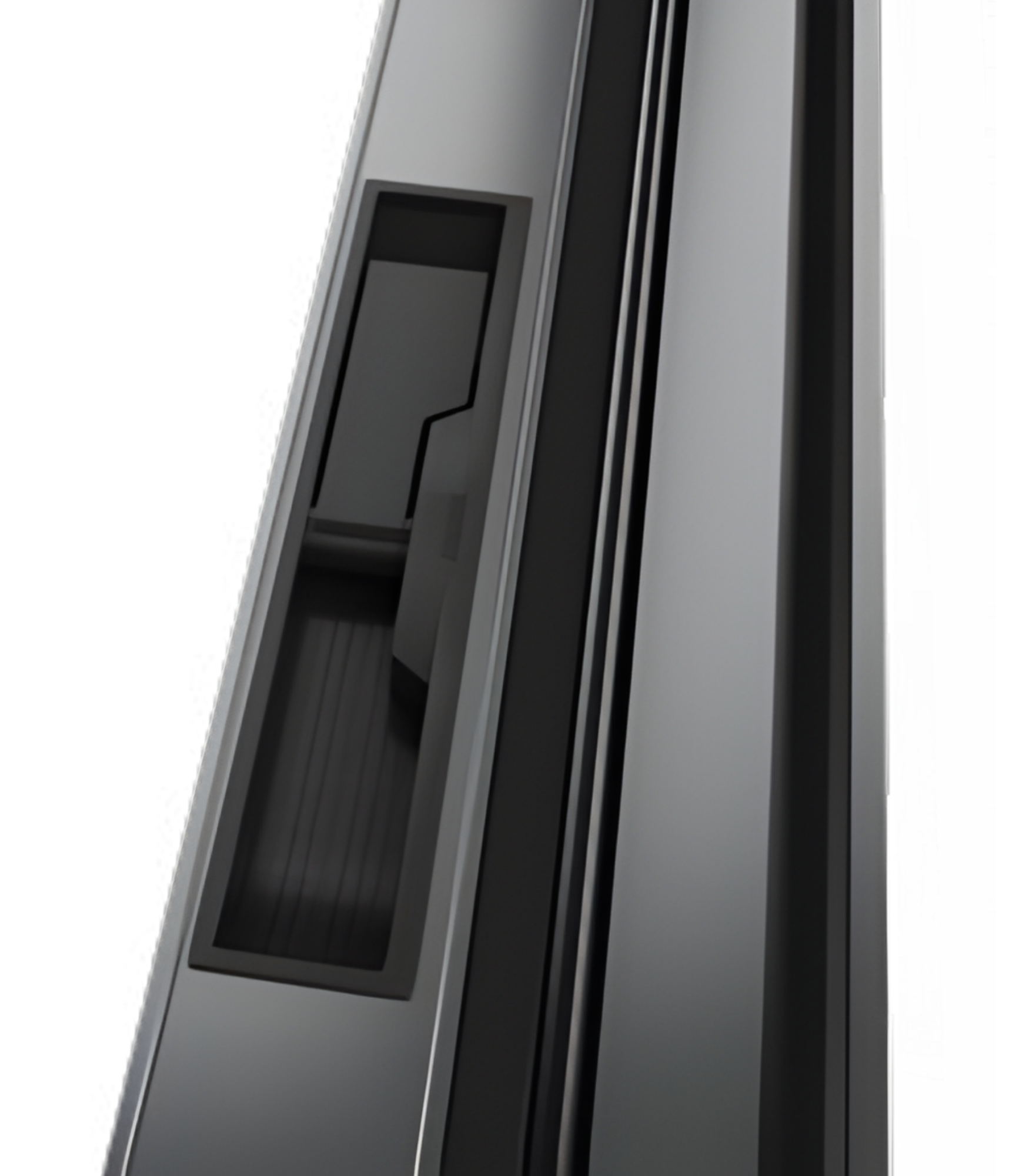

Security & Hardware. The multi-point locking mechanism engages at multiple points along the frame, not just one latch. That makes forced entry significantly harder and holds the sash tight against the gaskets. Hardware finishes match the frame finish, so you don’t get a black crank on a white window.
Color & Glass Options
The VLX 80 comes in six finishes. Premium Black and Pure White are the two most-requested in Delray Beach right now, and both fit modern construction with clean stucco lines. Anodized Silver gives you that raw aluminum look that plays well in industrial-style and contemporary homes. Bronze is a warmer dark tone that bridges modern and traditional. Champagne reads as a soft metallic tan, good for homes with warm stone or cream exteriors. Teak Wood mimics wood grain and works well on Key West-style and coastal traditional homes in Delray Beach’s historic districts.
On the glass side: Clear is standard. Low-E adds a microscopically thin coating that reflects heat while letting light through, which is the right pick for most Delray Beach elevations. Frosted works for bathrooms or any window where privacy matters more than the view. Tempered is safety glass that shatters into pebbles instead of shards, and we recommend it for any window near a floor, door, or walkway. Laminated is the impact-rated option: two glass layers bonded with an interlayer that holds the pane together even under a 2×4 hit at 50 feet per second. It’s the choice for hurricane-prone zones and noisy streets.
Installation by TruePane Windows & Doors in Delray Beach
Here’s what our installation looks like, step by step. First, we inspect the existing opening: condition of the buck, presence of any hidden rot in wood framing, and whether the rough opening matches the ordered unit. We shim the frame into position so it’s perfectly level and plumb, not just close enough. We then square the frame diagonally to eliminate binding in the swing operation before fastening.
Once the unit is anchored to the manufacturer’s fastener schedule, we apply AAMA 812 low-expansion foam around the full perimeter. This foam doesn’t bow the frame and cures into a stable air seal. A continuous exterior sealant line follows, tooled to shed water. Every VLX 80 install by TruePane complies with AAMA 2400/2410 installation standards, which is the accepted benchmark for aluminum window installation in the field.
We finish with a water test on the sill and lower corners, then clean the glass, remove all debris, and walk the operation with you so you know how the lock and crank feel on day one. This matters for two reasons. First, a warranty claim on a window that was installed out of square or under-fastened will be denied by the manufacturer because the installation, not the product, caused the failure. Second, Delray Beach’s humidity, salt air near the beach, and afternoon rain cycles expose any installation shortcut within a few seasons. You want the foam, the flashing, and the fasteners done right from day one.
Frequently Asked Questions - VLX 80 Casement Window
Lead time runs 4 to 7 weeks from order confirmation for standard sizes and finishes in Delray Beach. Custom configurations or laminated impact glass can push to 8 weeks. We’ll confirm a delivery window before you sign, and we don’t start the permit process until the lead time is locked. Call (561) 940-2917 and we’ll check current availability for your size and finish.
With Low-E glass and the correct NFRC-rated configuration, the VLX 80 can qualify for federal energy efficiency tax credits. Qualification depends on the specific glazing package and the home’s location, not just the frame. We’ll provide the NFRC documentation you need at quote time so you can confirm eligibility with your tax advisor.
The manufacturer provides a limited warranty on the frame and insulated glass unit, with terms varying by finish and glazing selection. TruePane Windows & Doors provides a workmanship warranty on installation, separate from the manufacturer’s product warranty. We’ll give you both in writing as part of your quote packet.
The VLX 80 is built to order per project dimensions, within the manufacturer’s minimum and maximum size constraints for casement operation. That means odd-sized openings in older Delray Beach homes, especially pre-1960s builds in the Pineapple Grove area, can usually be accommodated without reframing the opening.
Rinse the frame and track with fresh water every 3 to 4 months in Delray Beach, especially if you’re within a mile of the ocean. Salt spray accumulates and pitting starts when salt sits on raw or anodized aluminum. Dry salt weeps and any visible debris, then lubricate the crank mechanism with a dry silicone lubricant annually. Don’t use petroleum-based lubricants, which attract sand and grit.
Get a Quote - VLX 80 Casement Window in Delray Beach
We’ll come out, measure your openings, and give you a written line-item quote with pricing broken out per window. No lump-sum vagueness, no pressure. If you’re planning a full-home window replacement in Delray Beach or just want one stubborn west-facing window done right, call (561) 940-2917 and we’ll schedule your free on-site measurement this week.
Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Delray Beach, FL.
